Lab 2: Implement the customer creation logic

Overview

In the previous lab, we created the project skeleton from the Customer API. Now it’s time to implement it. The Customer API contains all the operations for managing customer data - create (POST), read (GET) , update (PUT) and delete (DELETE). For the purposes of this lab, we will only implement the customer creation represented by the POST method.

The customer creation logic is as follows:

  1. Create the Account in Salesforce (SFDC) to represent the customer
  2. Validate the successful creation of the account
  3. If validation fails,
    • Raise an error mapped to Bad Request (400 is the status code for Bad Requests)
  4. If successful,
    • Get Account Details
    • Convert Response to JSON

Step 1: Add Salesforce Connector to the Project

The steps that need to be executed are:

  1. With the api view selected, click the Add Module sign in the Mule Palette view in order to add the Salesforce Connector and Validation module required for our implementation in the next step.

  2. Drag and Drop Salesforce Connector and Validation Module (select latest version for this one).

    Notice that we’re leveraging the mule lightweight module-based framework to support our use case. The Salesforce Connector provides connectivity to Salesforce and the Validation Module is a component to implement validations, similar to the concept of an assertion, for validation checks like boolean expressions, null values, specific values, and other conditions. Subsequently, the flow execution can generate out of the box and custom Error Types to the Error handling scopes within your flow.

    At the end, the palette should look similar to the following image.

  3. Now, you are ready to implement the POST resource operation. Find the post:\customer:application\json:api-config resource flow (at the bottom of the api view)

  4. Delete the generated Transform Message step that returned the sample response from the API specification

  5. From the Mule Palette, select Salesforce​, scroll to Create and drag and drop the component to the flow.

  6. Click on Salesforce icon and the configuration will be shown below.

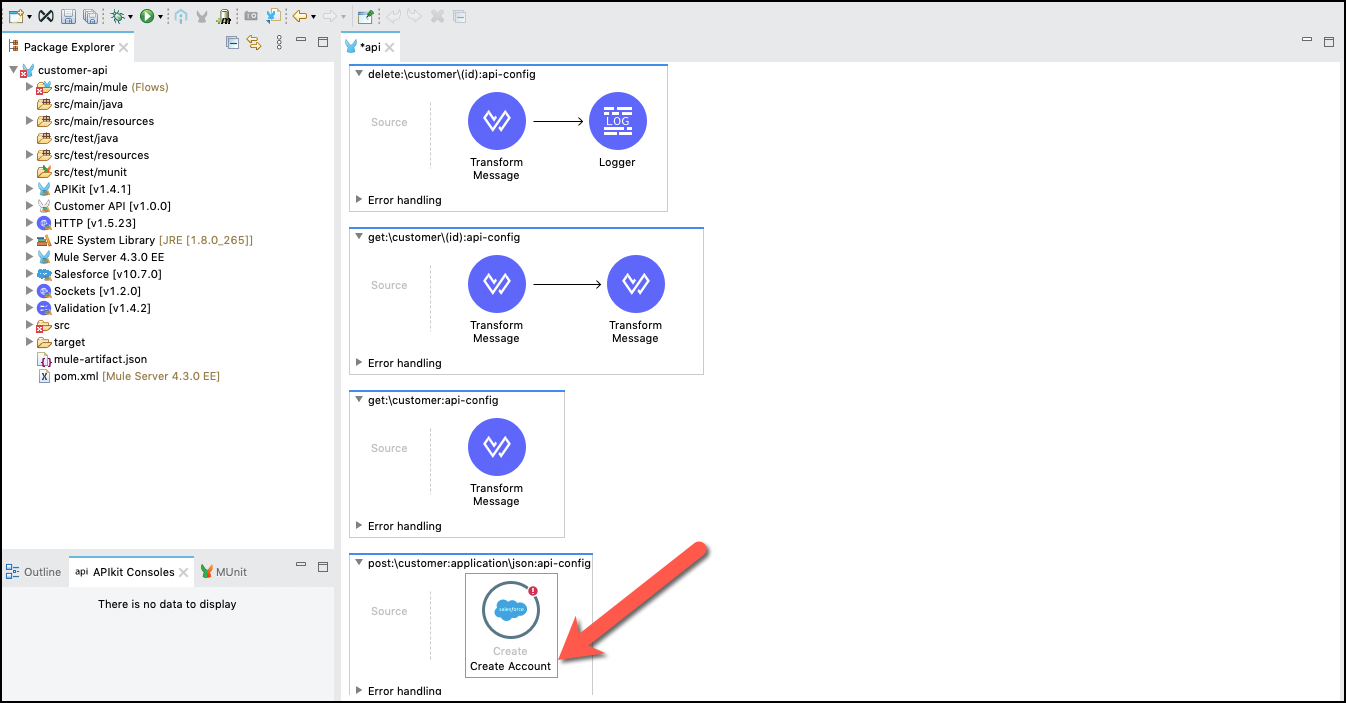

  7. Change its name to Create Account

  8. Click the Save All button.

Step 2: Create a Property File

It’s a good practice to create a configuration file to hold all the parametrized properties in the project. We are going to create one and configure the connection credentials for our API implementation. First, we are going to create a folder and then create the config file.

  1. Click on src/main/resources in the Package Explorer view, right click and create a New → Folder, name it configuration and click Finish

  2. Click on src/main/resources/configuration in the Package Explorer view, right click and create a New → File, name it config.yaml and click Finish.

  3. Copy the following contents into config.yaml. These are the connection credentials your API will use for the Salesforce connector.

     sfdc:
         username: "<WILL BE PROVIDED>"
         password: "<WILL BE PROVIDED"
         securityToken: "<WILL BE PROVIDED"


  4. To finish the configuration of the properties file for your API, click on the api view and click on the Global Elements tab.

  5. Click Create, search for properties, select Configuration Properties, click OK. enter configuration/config.yaml in the File: attribute and click OK.

  6. Click the Save All button

Step 3: Configure Salesforce Connector

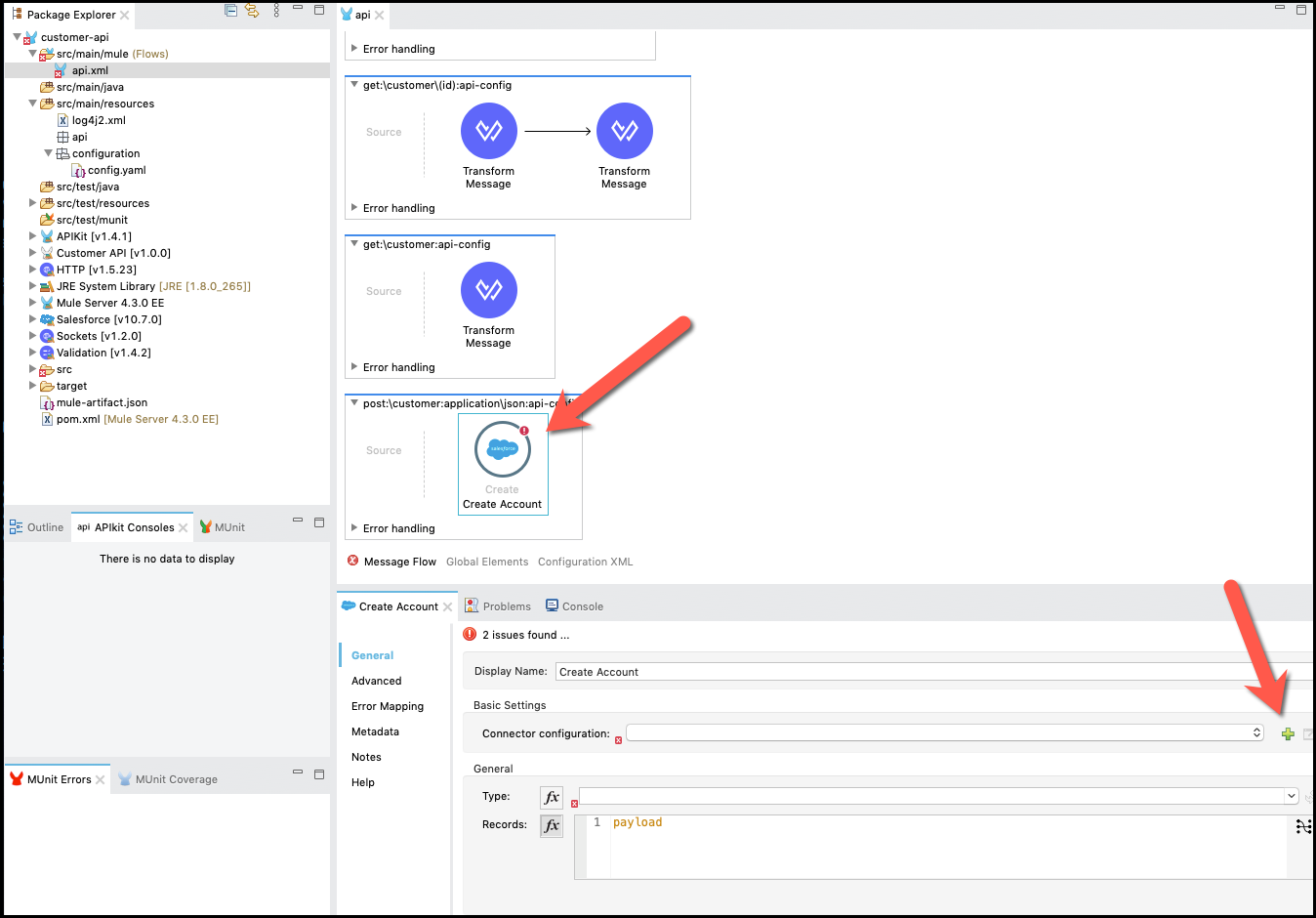

  1. Now that you have your properties defined, let’s configure a new connector configuration. Go back to the Message Flow tab where you previously dropped the Salesforce connector and select it.

  2. Click on button on the Connector Configuration.

  3. For the connector configuration we are going to put the following properties:

  • username: ${sfdc.username}
  • password: ${sfdc.password}
  • securityToken: ${sfdc.securityToken}
  1. Press Test Connection…​ to check everything is in place.

  2. Press OK (2 times).

  3. Click the Save All button.

Step 4: Create an Account

Let’s configure the Salesforce connector to create an Account. We continue in the Salesforce Panel.

  1. Adjacent to the Type: property click the refresh button refresh button, then select Account.

    If no options are displayed insert manually the option Account yourself.

  2. Remove payload word in the Record box and press Refresh Metadata.

    Now that we have configured the Salesforce connector, we need to create a mapping that will convert the JSON message from the Request to the Account Object that is going to be saved in Salesforce.

  3. Inside the Salesforce connector panel, in the Records section, press on .

  4. You will see a Dataweave transformation, look at the input and output panels. You can drag and drop each field from the request (input) to the Salesforce object (output).

    In this mapping you will also use a function, uuid(), to generate a unique AccountNumber.

    This is the mapping code that the picture reflects. You can copy and paste it into your Dataweave text editor and the UI will reflect the changes

         %dw 2.0
         output application/java
         ---
         [{
             Name: payload.name,
             BillingStreet: payload.billingAddress.address1,
             BillingCity: payload.billingAddress.city,
             BillingState: payload.billingAddress.state,
             BillingPostalCode: payload.billingAddress.postalCode,
             BillingCountry: payload.billingAddress.country,
             ShippingStreet: payload.shippingAddress.address1,
             ShippingCity: payload.shippingAddress.city,
             ShippingState: payload.shippingAddress.state,
             ShippingPostalCode: payload.shippingAddress.postalCode,
             ShippingCountry: payload.shippingAddress.country,
             Phone: payload.phone,
             AccountNumber: uuid(),
             Account_Email__c: payload.email
         }]


    Dataweave has a lot of useful functions that can be explore in Studio. Stand in the AccountNumber field and press F3 you can see all the functions that can be applied. Filter by uuid and you will find information about the function.

    Press Done when you finish the mapping.

  5. Click the Save All button

Step 5: Validate Salesforce Response

Once the Customer is saved, we need to evaluate the response from Salesforce (the request may fail if the information being sent is invalid).

  1. To do this, we are going to add a Validation: is true component. Type is true in the Mule Palette
  2. Drag and drop the icon at the end of the Flow.

  3. Implement the validation properties

    a. Display Name: Validate Response

    b. Expression: #[payload.successful == true]

    c. Message: Account Creation was Unsuccessful

    In the Validation component we are evaluating the Salesforce response.

  4. In the Validation, there are going to be two configuration changes, the Expression and the Message. Also, You will ensure that the out of the box error type is used to generate a validation error.

    a. Validate the response value

    b. If there was an error, we are going to respond with a Bad Request.

  5. Check the error mapping for the validation. Click the Error Mapping tab and click the button to view the out of the box error types, note the VALIDATION:INVALID_BOOLEAN is pre-populated so you don’t have to do anything else here.

    In this case we are not going to map the error validation to a custom error. Instead, we are going to add the VALIDATION:INVALID_BOOLEAN to the APIKIT errors.

  6. Now, set the VALIDATION:INVALID_BOOLEAN in the APIKIT:BAD_REQUEST Error handler. Navigate towards the top of the api Message Flow view, locate the error handler, and select the Error Type.

  7. In the Type section add the following text ,VALIDATION:INVALID_BOOLEAN (mind the comma)

    Notice that mule provides an easy way to generate and capture out of the box, as well as, custom error types, to enable easy configuration of error handling scenarios.

  8. Click the Save All button

Step 6: Build the Response

In this step we are going to get the created account and then we will build the response.

  1. Similar to the earlier step, drag and drop a Query component within the Salesforce connector to the end of the flow.

  2. Configure the following properties:

    a. Display Name​: Get Account Detail

    b. Connector Configurator​: Salesforce_Config (we are reusing the configuration we created before).

    c. Salesforce query​: SELECT Id, AccountNumber, Name FROM Account where Id = ':id'

    d. Parameters​:

    • Name: "id"

    • Value: payload.items[0].id

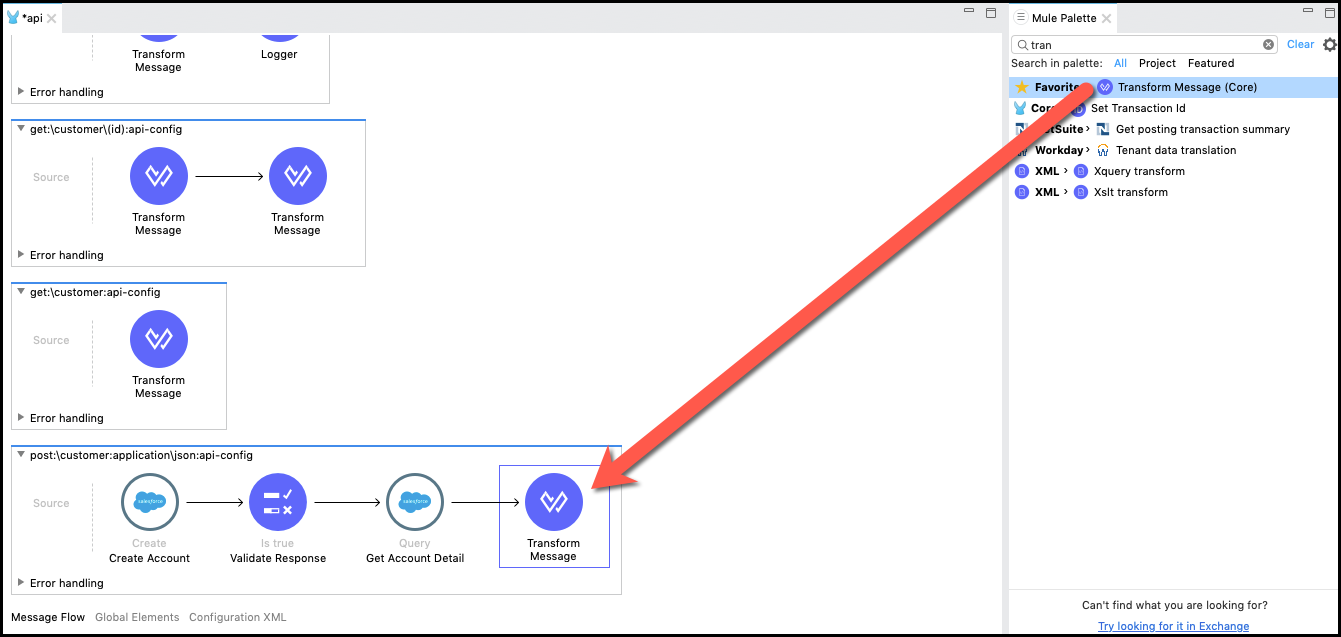

  3. Now you will create the transform step that will build the service response. To do that drag and drop a Transform Message after the Salesforce icon that was created in the previous step.

  4. Right click on the Transform Message and select Rename. Change the Transform Message text with SFDC Account Detail to JSON.

  5. Click on the icon and let’s see the transformation

    You will see the response from SFDC and the API Response.

  6. Copy and Paste the following dataweave script:

         %dw 2.0
         output application/json
         var customer = payload[0]
         ---
         {
             name: customer.Name default "",
             id: customer.AccountNumber default ""
         }


    If you look carefully, you will notice that 1. The Response is an array. That’s why we are saving the first element is saved in a variable called customer. 1. The Id and AccountNumber are defined as optional in the input. While in the output they are mandatory. That’s why you set a default value.

  7. Click the Save button.

This concludes the customer creation logic and we are ready to test the API.

Summary

In this lab, we

  • Implement the post flow

  • Configure the Salesforce connector

  • Retrieve Salesforce Account Object

  • Handle Salesforce Error

Go Further:

Congratulations! You have completed Lab 2.

Please proceed to Lab 3
